Our top selling model of The Lithium Box is also our smallest.

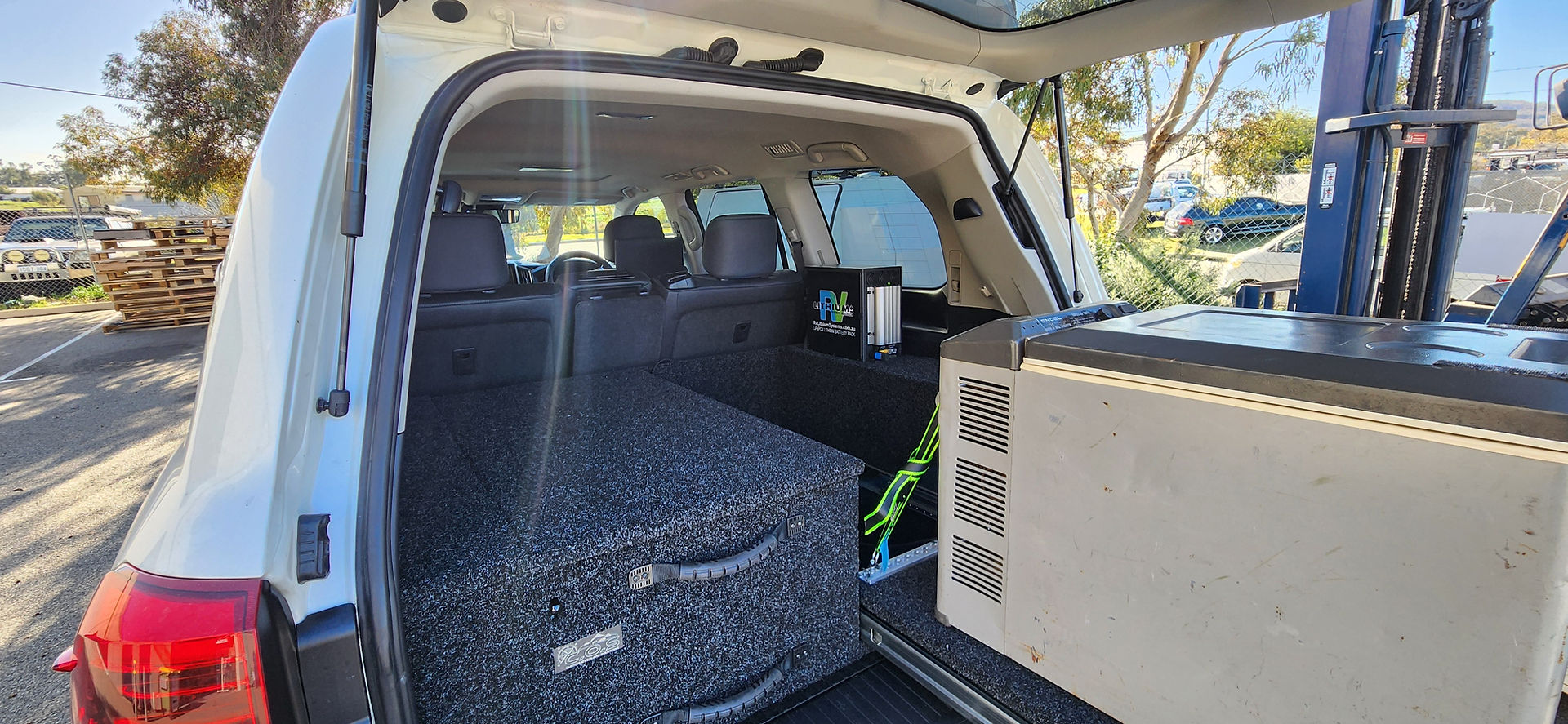

To power up an Engel fridge in a 200 Series Sahara Landcruiser, with the option to power a bigger fridge when touring with the caravan, we fitted Mike's Cruiser with The Lithium Box (TLB) 100/40 Small.
Capable of running two mid-sized fridges, TLB100/40 Small features:
100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

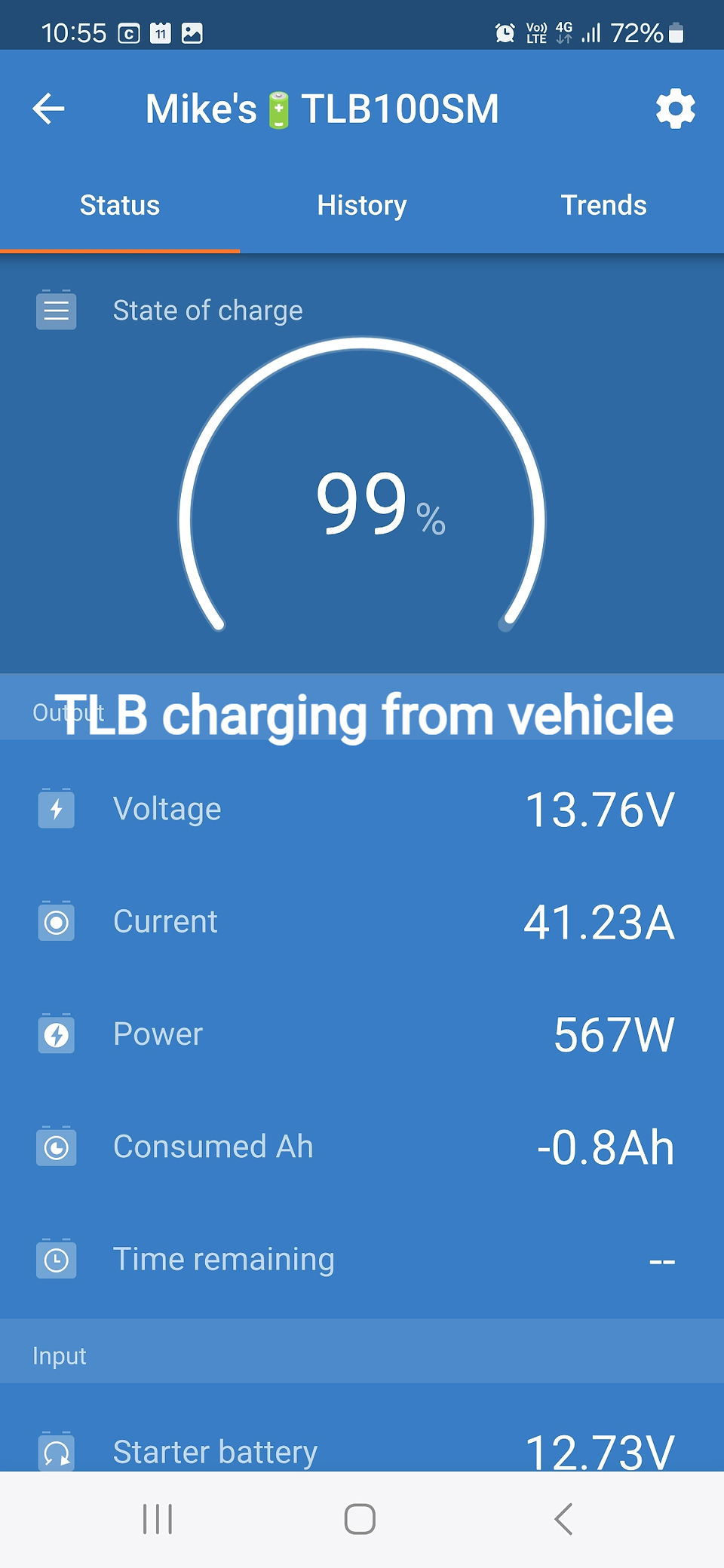

Victron Smart Shunt Bluetooth Battery Meter. Read the battery meter from the convenience of your smart phone. Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.
Master Battery Switch
Automatic 65A Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge
Internal Fusing and Output Short Circuit Protection
REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection
1 x 50A (max) Grey Anderson Plug Output
1 x 50A Grey Anderson Plug Output 15A (Max) suitable for Fridge Socket
2 x Accessory (Cig) Sockets
1 x Waeco/Engel Socket
A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging
(5 to 15A max).
A Smart Alternator Ignition Wire Input or Loop Connection.
Weighs in at only 15kgsMeasures 315 x 155 x 275mmH (add 30mm to length for mounting foot)
For the full range of models and specifications of The Lithium Box, click here.
